InputArguments Class Reference

Utility to parse input arguments. More...

#include <arguments.h>

Classes
struct	CaseInsensitiveComparator
	Case-insensitive comparator for std::string. More...

Public Types
typedef std::map< std::string, const mxArray *, CaseInsensitiveComparator >	OptionMap

Public Member Functions
	InputArguments ()
	Empty constructor.
	InputArguments (int nrhs, const mxArray *prhs[], int mandatory_size=1, int option_size=0,...)
	Shorthand constructor for a single argument definition.
virtual	~InputArguments ()
void	define (const std::string name, int mandatory_size, int option_size=0,...)
	Define a new argument format.
void	parse (int nrhs, const mxArray *prhs[], bool ignore_multi_signatures=false)
	Parse arguments from mexFunction input.
bool	is (const std::string &name) const
	Return which format is chosen.
const mxArray *	get (size_t index) const
	Get a parsed mandatory argument.
template<typename T >
T	get (size_t index) const
	Get a parsed mandatory argument.
template<typename T >
void	get (size_t index, T *value) const
const mxArray *	get (const std::string &option_name) const
	Get a parsed optional argument.
template<typename T >
T	get (const std::string &option_name, const T &default_value) const
	Get a parsed optional argument.
template<typename T >
void	get (const std::string &option_name, const T &default_value, T *value) const
const mxArray *	operator[] (size_t index) const
	Access raw mxArray* pointer.
const mxArray *	operator[] (const std::string &option_name) const
	Access raw mxArray* pointer.

Private Member Functions
void	fillOptionalDefinition (int option_size, OptionMap *optionals, va_list variable_list)
	Fill in optional arguments definition.
bool	parseDefinition (size_t nrhs, const mxArray *prhs[], Definition *definition)
	Try to parse one definition or return false on failure.

Private Attributes
std::map< std::string, Definition >	definitions_
	Format definitions.
std::string	error_message_
	Last error message.

Detailed Description

Utility to parse input arguments.

Example: parse 2 mandatory and 2 optional arguments.

InputArguments input(nrhs, prhs, 2, 2, "option1", "option2");
myFunction2(input.get<double>(0),
            input.get<int>(1),
            input.get<string>("option1", "foo"),
            input.get<int>("option2", 10));

Example: parse 1 + 2 argument format or 2 + 2 argument format.

InputArguments input;
input.define("format1", 1, 2, "option1", "option2");
input.define("format2", 2, 2, "option1", "option2");
input.parse(nrhs, prhs);
if (input.is("format1"))
    myFunction(input.get<int>(0),
               input.get<string>("option1", "foo"),
               input.get<int>("option2", 10));
else if (input.is("format2"))
    myFunction2(input.get<int>(0),
                input.get<string>(1),
                input.get<string>("option1", "foo"),
                input.get<int>("option2", 10));

Member Typedef Documentation

OptionMap

typedef std::map<std::string, const mxArray*, CaseInsensitiveComparator> OptionMap

Constructor & Destructor Documentation

InputArguments() [1/2]

InputArguments ( )

inline

Empty constructor.

InputArguments() [2/2]

InputArguments ( int nrhs, const mxArray * prhs[], int mandatory_size = 1, int option_size = 0, ... )

inline

Shorthand constructor for a single argument definition.

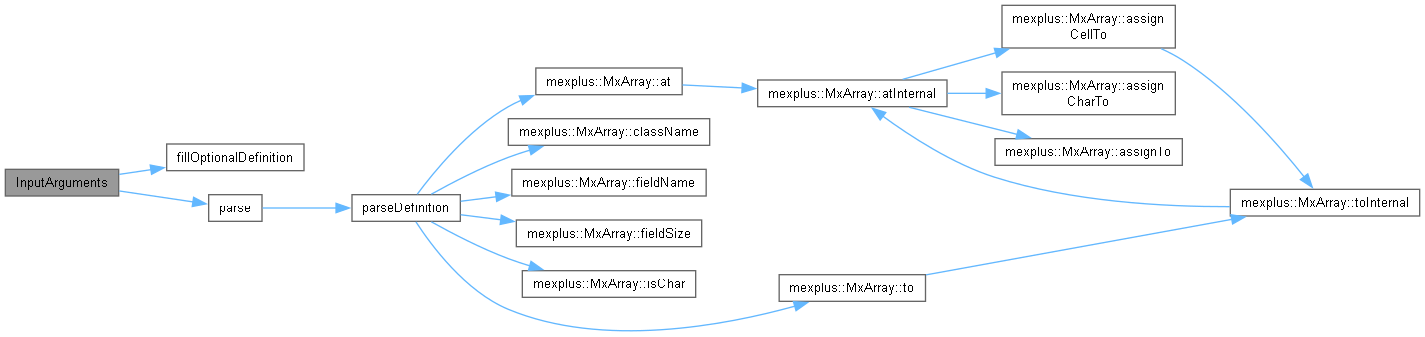

Here is the call graph for this function:

~InputArguments()

virtual ~InputArguments ( )

inlinevirtual

Member Function Documentation

define()

void define ( const std::string name, int mandatory_size, int option_size = 0, ... )

inline

Define a new argument format.

Here is the call graph for this function:

fillOptionalDefinition()

void fillOptionalDefinition ( int option_size, OptionMap * optionals, va_list variable_list )

inlineprivate

Fill in optional arguments definition.

Here is the caller graph for this function:

get() [1/6]

const mxArray * get ( const std::string & option_name ) const

inline

Get a parsed optional argument.

get() [2/6]

template<typename T >

T get	(	const std::string &	option_name,
		const T &	default_value ) const

Get a parsed optional argument.

Here is the call graph for this function:

get() [3/6]

template<typename T >

void get	(	const std::string &	option_name,
		const T &	default_value,
		T *	value ) const

Here is the call graph for this function:

get() [4/6]

const mxArray * get ( size_t index ) const

inline

Get a parsed mandatory argument.

Here is the caller graph for this function:

get() [5/6]

template<typename T >

T get

(

size_t

index

)

const

Get a parsed mandatory argument.

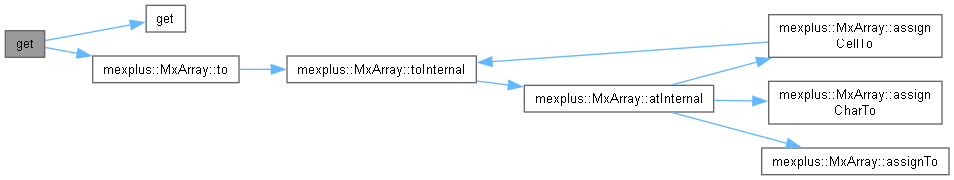

Here is the call graph for this function:

get() [6/6]

template<typename T >

void get	(	size_t	index,
		T *	value ) const

Here is the call graph for this function:

is()

bool is ( const std::string & name ) const

inline

Return which format is chosen.

operator[]() [1/2]

const mxArray * operator[] ( const std::string & option_name ) const

inline

Access raw mxArray* pointer.

Here is the call graph for this function:

operator[]() [2/2]

const mxArray * operator[] ( size_t index ) const

inline

Access raw mxArray* pointer.

Here is the call graph for this function:

parse()

void parse ( int nrhs, const mxArray * prhs[], bool ignore_multi_signatures = false )

inline

Parse arguments from mexFunction input.

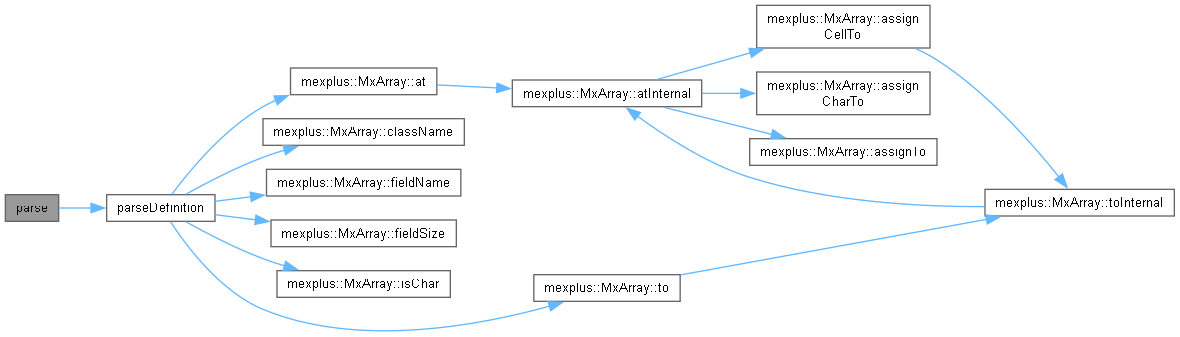

Here is the call graph for this function:

Here is the caller graph for this function:

parseDefinition()

bool parseDefinition ( size_t nrhs, const mxArray * prhs[], Definition * definition )

inlineprivate

Try to parse one definition or return false on failure.

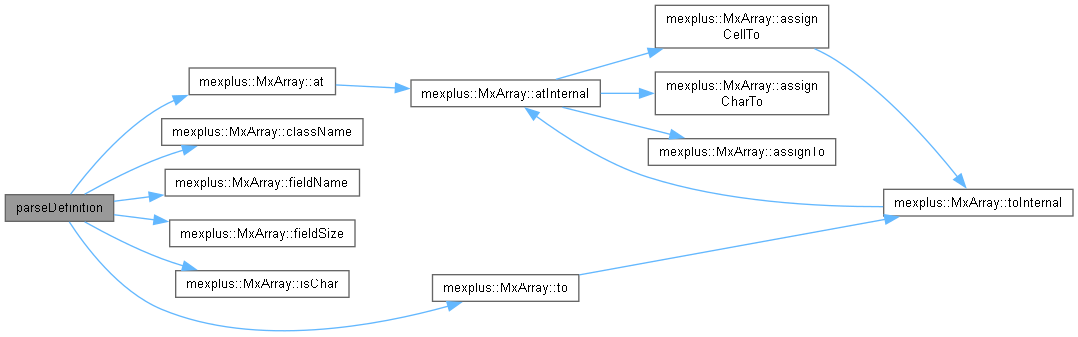

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

definitions_

std::map<std::string, Definition> definitions_

private

Format definitions.

error_message_

std::string error_message_

private

Last error message.

---

The documentation for this class was generated from the following file:

• F:/dev/projects/MocoExtendProblem/libs/mexplus/arguments.h
