mxArray object wrapper for data conversion and manipulation. More...

#include <mxarray.h>

Public Member Functions
	MxArray ()
	Empty MxArray constructor.

MxArray &	operator= (std::nullptr_t)
	NULL assignment.

	MxArray (MxArray &&array) NOEXCEPT
	Move constructor.

MxArray &	operator= (MxArray &&rhs) NOEXCEPT
	Move assignment.

	MxArray (const mxArray *array)
	MxArray constructor from const mxArray*.

	MxArray (mxArray *array)
	MxArray constructor from mutable mxArray*.

MxArray &	operator= (const mxArray *rhs)
	Assignment from const mxArray*.

MxArray &	operator= (mxArray *rhs)
	Assignment from mutable mxArray*.

template<typename T >
	MxArray (const T &value)
	MxArray constructor from scalar.

virtual	~MxArray ()
	Destructor.

void	swap (MxArray &rhs)
	Swap operation.

void	reset (const mxArray *array=NULL)
	Reset an mxArray to a const mxArray*.

void	reset (mxArray *array)
	Reset an mxArray.

mxArray *	release ()
	Release managed mxArray* pointer, or clone if not owner.

mxArray *	clone () const
	Clone mxArray.

const mxArray *	get () const
	Conversion to const mxArray*.

mxArray *	getMutable ()
	Get raw mxArray*.

	operator bool () const
	Return true if the array is not NULL.

bool	isOwner () const
	Return true if owner.

template<typename T >

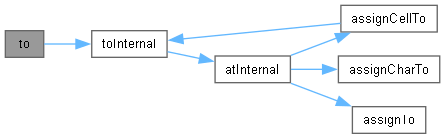

T	to () const
	Convert MxArray to a specified type.

template<typename T >
void	to (T *value) const

template<typename T >

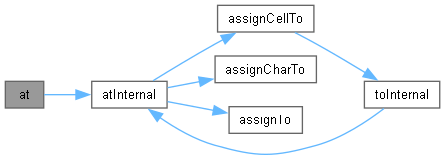

T	at (mwIndex index) const
	Template for element accessor.

template<typename T >
void	at (mwIndex index, T *value) const

const mxArray *	at (mwIndex index) const

template<typename T >

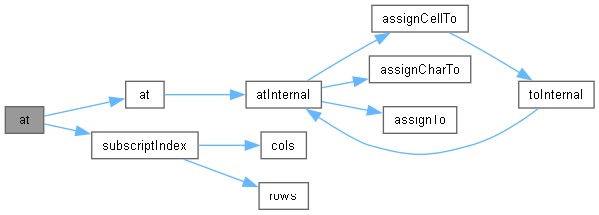

T	at (mwIndex row, mwIndex column) const
	Template for element accessor.

template<typename T >
T	at (const std::vector< mwIndex > &subscripts) const
	Template for element accessor.

template<typename T >
T	at (const std::string &field, mwIndex index=0) const
	Struct element accessor.

template<typename T >
void	at (const std::string &field, T *value, mwIndex index=0) const

const mxArray *	at (const std::string &field, mwIndex index=0) const

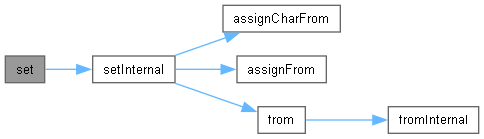

template<typename T >
void	set (mwIndex index, const T &value)
	Template for element write accessor.

template<typename T >
void	set (mwIndex row, mwIndex column, const T &value)
	Template for element write accessor.

template<typename T >
void	set (const std::vector< mwIndex > &subscripts, const T &value)
	Template for element write accessor.

void	set (mwIndex index, mxArray *value)
	Cell element write accessor.

void	set (mwIndex row, mwIndex column, mxArray *value)
	Cell element write accessor.

void	set (const std::vector< mwIndex > &subscripts, mxArray *value)
	Cell element write accessor.

template<typename T >
void	set (const std::string &field, const T &value, mwIndex index=0)
	Struct element write accessor.

void	set (const std::string &field, mxArray *value, mwIndex index=0)
	Struct element write accessor.

template<typename T >
T *	getData () const
	Get raw data pointer.

template<typename T >
T *	getImagData () const
	Get raw data pointer to imaginary part.

mxLogical *	getLogicals () const

mxChar *	getChars () const

mxClassID	classID () const
	Class ID of mxArray.

const std::string	className () const
	Class name of mxArray.

mwSize	size () const
	Number of elements in an array.

mwSize	dimensionSize () const
	Number of dimensions.

std::vector< mwSize >	dimensions () const
	Array of each dimension.

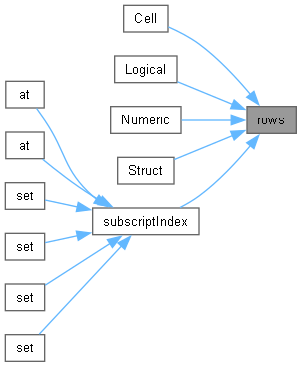

mwSize	rows () const
	Number of rows in an array.

mwSize	cols () const
	Number of columns in an array.

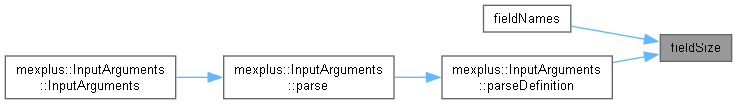

int	fieldSize () const
	Number of fields in a struct array.

std::string	fieldName (int index) const
	Get field name of a struct array.

std::vector< std::string >	fieldNames () const
	Get field names of a struct array.

mwSize	nonZeroMax () const
	Number of elements in IR, PR, and PI arrays.

mwIndex	subscriptIndex (mwIndex row, mwIndex column) const
	Offset from first element to desired element.

mwIndex	subscriptIndex (const std::vector< mwIndex > &subscripts) const
	Offset from first element to desired element.

bool	isCell () const
	Determine whether input is cell array.

bool	isChar () const
	Determine whether input is string array.

bool	isVector () const
	Determine whether input is vector array.

bool	isIntegral (const char *name) const
	Determine whether array is integral type.

bool	isClass (const char *name) const
	Determine whether array is member of specified class.

bool	isComplex () const
	Determine whether data is complex.

bool	isDouble () const
	Determine whether mxArray represents data as double-precision, floating-point numbers.

bool	isEmpty () const
	Determine whether array is empty.

bool	isFromGlobalWS () const
	Determine whether array was copied from MATLAB global workspace.

bool	isInt8 () const
	Determine whether array represents data as signed 8-bit integers.

bool	isInt16 () const
	Determine whether array represents data as signed 16-bit integers.

bool	isInt32 () const
	Determine whether array represents data as signed 32-bit integers.

bool	isInt64 () const
	Determine whether array represents data as signed 64-bit integers.

bool	isLogical () const
	Determine whether array is of type mxLogical.

bool	isLogicalScalar () const
	Determine whether scalar array is of type mxLogical.

bool	isLogicalScalarTrue () const
	Determine whether scalar array of type mxLogical is true.

bool	isNumeric () const
	Determine whether array is numeric.

bool	isSingle () const
	Determine whether array represents data as single-precision, floating-point numbers.

bool	isSparse () const
	Determine whether input is sparse array.

bool	isStruct () const
	Determine whether input is structure array.

bool	isUint8 () const
	Determine whether array represents data as unsigned 8-bit integers.

bool	isUint16 () const
	Determine whether array represents data as unsigned 16-bit integers.

bool	isUint32 () const
	Determine whether array represents data as unsigned 32-bit integers.

bool	isUint64 () const
	Determine whether array represents data as unsigned 64-bit integers.

bool	hasField (const std::string &field_name, mwIndex index=0) const
	Determine whether a struct array has a specified field.

int	elementSize () const
	Element size.

Static Public Member Functions
template<typename T >
static mxArray *	Numeric (int rows=1, int columns=1)
	Create a new numeric (real or complex) matrix.

template<typename T >
static mxArray *	Numeric (std::vector< std::size_t > dims)
	Create a new numeric (real or complex) matrix.

static mxArray *	Logical (int rows=1, int columns=1)
	Create a new logical matrix.

static mxArray *	Cell (int rows=1, int columns=1)
	Create a new cell matrix.

static mxArray *	Struct (int nfields=0, const char **fields=NULL, int rows=1, int columns=1)
	Generic constructor for a struct matrix.

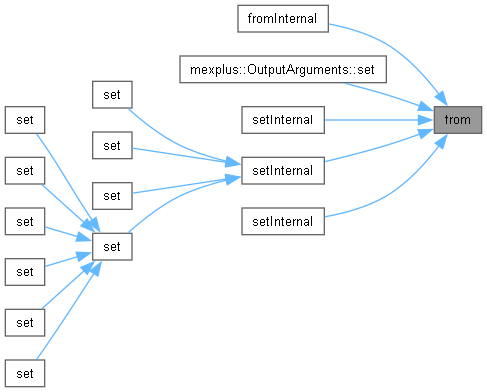

template<typename T >
static mxArray *	from (const T &value)
	mxArray* importer methods.

static mxArray *	from (const char *value)

static mxArray *	from (int32_t value)

template<typename T >
static void	to (const mxArray array, T value)
	mxArray* exporter methods.

template<typename T >
static T	to (const mxArray *array)

template<typename T >
static T	at (const mxArray *array, mwIndex index)
	mxArray* element reader methods.

template<typename T >
static void	at (const mxArray array, mwIndex index, T value)

static const mxArray *	at (const mxArray *array, mwIndex index)

template<typename T >
static void	at (const mxArray array, const std::string &field, T value, mwIndex index=0)

static const mxArray *	at (const mxArray *array, const std::string &field, mwIndex index=0)

template<typename T >
static void	set (mxArray *array, mwIndex index, const T &value)
	mxArray* element writer methods.

static void	set (mxArray array, mwIndex index, mxArray value)

template<typename T >
static void	set (mxArray *array, const std::string &field, const T &value, mwIndex index=0)

static void	set (mxArray array, const std::string &field, mxArray value, mwIndex index=0)

static bool	IsFinite (double value)
	Determine whether input is finite.

static bool	IsInf (double value)
	Determine whether input is infinite.

static bool	IsNaN (double value)
	Determine whether input is NaN (Not-a-Number).

static double	Inf ()
	Value of infinity.

static double	NaN ()
	Value of NaN (Not-a-Number).

static double	Eps ()
	Value of EPS.

Private Member Functions
	MxArray (const MxArray &array)
	Copy constructor is prohibited except internally.

MxArray &	operator= (const MxArray &rhs)
	Copy assignment operator is prohibited.

Static Private Member Functions
template<typename T >
static mxArray *	fromInternal (const typename std::enable_if< MxArithmeticType< T >::value, T >::type &value)
	Templated mxArray importers

template<typename T >
static mxArray *	fromInternal (const typename std::enable_if< MxComplexType< T >::value, T >::type &value)
	Complex types, complex<float> or complex<double>.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if< MxArithmeticCompound< Container >::value, Container >::type &value)
	Container with fundamental numerics, i.e.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if< MxComplexCompound< Container >::value, Container >::type &value)
	Container with complex numbers, i.e.

template<typename T >
static mxArray *	fromInternal (const typename std::enable_if< MxCharType< T >::value, T >::type &value)
	Char type.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if<(MxCharCompound< Container >::value) &&(std::is_signed< typename Container::value_type >::value), Container >::type &value)
	Containter with signed char.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if<(MxCharCompound< Container >::value) &&!(std::is_signed< typename Container::value_type >::value), Container >::type &value)
	Container with unsigned char.

template<typename T >
static mxArray *	fromInternal (const typename std::enable_if< MxLogicalType< T >::value, T >::type &value)
	Logicals.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if< MxLogicalCompound< Container >::value, Container >::type &value)
	Container with logicals.

template<typename Container >
static mxArray *	fromInternal (const typename std::enable_if< MxCellCompound< Container >::value, Container >::type &value)
	Container with cell type content.

template<typename T >

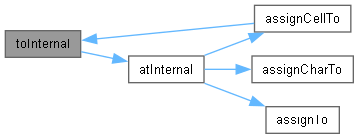

static void	toInternal (const mxArray array, typename std::enable_if< MxArithmeticType< T >::value\|\|MxComplexType< T >::value\|\|MxLogicalType< T >::value\|\|MxCharType< T >::value, T >::type value)
	Templated mxArray exporters

template<typename T >
static void	toInternal (const mxArray array, typename std::enable_if< MxComplexOrArithmeticCompound< T >::value\|\|MxLogicalCompound< T >::value\|\|MxCharCompound< T >::value, T >::type value)
	Vector types.

template<typename T >
static void	toInternal (const mxArray array, typename std::enable_if< MxCellType< T >::value &&(!std::is_compound< T >::value\|\|MxCellType< typename T::value_type >::value), T >::type value)
	Nested types (leads into recursive deduction).

template<typename T >

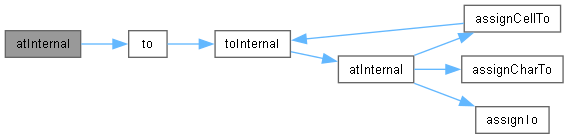

static void	atInternal (const mxArray array, mwIndex index, typename std::enable_if< MxComplexOrArithmeticType< T >::value\|\|MxLogicalType< T >::value\|\|MxCharType< T >::value, T >::type value)
	Templated mxArray getters

template<typename T >
static void	atInternal (const mxArray array, mwIndex index, typename std::enable_if< std::is_compound< T >::value &&!MxComplexType< T >::value, T >::type value)
	Converter for nested types.

template<typename T >
static void	atInternal (const mxArray array, const std::string &field, mwIndex index, T value)
	Structure access.

template<typename T >

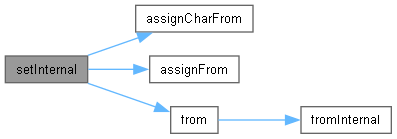

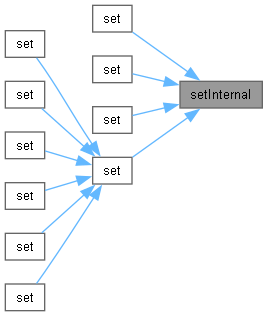

static void	setInternal (mxArray *array, mwIndex index, const typename std::enable_if< !std::is_compound< T >::value\|\|MxComplexType< T >::value, T >::type &value)
	Templated mxArray element setters

template<typename T >
static void	setInternal (mxArray *array, mwIndex index, const typename std::enable_if< MxCellType< T >::value, T >::type &value)
	Container types.

template<typename T >
static void	setInternal (mxArray *array, const std::string &field, mwIndex index, const T &value)
	Structure access.

template<typename T , typename R >
static void	assignTo (const mxArray array, mwIndex index, typename std::enable_if< std::is_integral< R >::value, R >::type value)
	Assignment helpers (for MxArray.to<type>(value))

template<typename T , typename R >
static void	assignTo (const mxArray array, mwIndex index, typename std::enable_if< std::is_floating_point< R >::value, R >::type value)
	Explicit floating point element assignment.

template<typename T , typename R >
static void	assignTo (const mxArray array, mwIndex index, typename std::enable_if< MxComplexType< R >::value, R >::type value)
	Explicit complex element assignment.

template<typename R >
static void	assignCharTo (const mxArray array, mwIndex index, typename std::enable_if< std::is_signed< R >::value, R >::type value)
	Explicit char (signed) element assignment.

template<typename R >
static void	assignCharTo (const mxArray array, mwIndex index, typename std::enable_if< !std::is_signed< R >::value, R >::type value)
	Explicit char (unsigned) element assignment.

template<typename T >
static void	assignCellTo (const mxArray array, mwIndex index, T value)
	Explicit cell element assignment.

template<typename T , typename R >
static void	assignTo (const mxArray array, typename std::enable_if< MxArithmeticCompound< R >::value\|\|MxLogicalCompound< R >::value\|\|MxCharCompound< R >::value, R >::type value)
	Explicit numeric array assignment.

template<typename T , typename R >
static void	assignTo (const mxArray array, typename std::enable_if< MxComplexCompound< R >::value, R >::type value)
	Explicit complex array assigment.

template<typename R >
static void	assignStringTo (const mxArray array, typename std::enable_if< std::is_signed< typename R::value_type >::value, R >::type value)
	Explicit char (signed) array assignment.

template<typename R >
static void	assignStringTo (const mxArray array, typename std::enable_if< !std::is_signed< typename R::value_type >::value, R >::type value)
	Explicit char (unsigned) array assignment.

template<typename T >
static void	assignCellTo (const mxArray array, T value)
	Explicit cell array assignment.

template<typename R , typename T >
static void	assignFrom (mxArray *array, mwIndex index, const typename std::enable_if< MxArithmeticType< T >::value\|\|MxCharType< T >::value, T >::type &value)
	Assignment helpers (for MxArray.set<type>(i, value))

template<typename R , typename T >
static void	assignFrom (mxArray *array, mwIndex index, const typename std::enable_if< MxComplexType< T >::value, T >::type &value)
	Explicit complex element assignment.

template<typename T >
static void	assignCharFrom (mxArray *array, mwIndex index, const typename std::enable_if< std::is_floating_point< T >::value, T >::type &value)

template<typename T >
static void	assignCharFrom (mxArray *array, mwIndex index, const typename std::enable_if< std::is_integral< T >::value &&std::is_signed< T >::value, T >::type &value)

template<typename T >
static void	assignCharFrom (mxArray *array, mwIndex index, const typename std::enable_if< std::is_integral< T >::value &&!std::is_signed< T >::value, T >::type &value)

template<typename T >
static void	assignCharFrom (mxArray *array, mwIndex index, const typename std::enable_if< MxComplexType< T >::value, T >::type &value)

Private Attributes
mxArray *	array_
	Pointer to the mxArray C object.

bool	owner_
	Flag to enable resource management.

Detailed Description

mxArray object wrapper for data conversion and manipulation.

The class is similar to a combination of unique_ptr and wrapper around Matlab's matrix API. An MxArray object created from a mutable mxArray* pointer automatically frees its internal memory unless explicitly released. When MxArray is created from a const mxArray*, the object does not manage memory but still provides the same matrix API.

Constructor & Destructor Documentation

◆ MxArray() [1/6]

MxArray ( )

inline

Empty MxArray constructor.

Use reset() to set a pointer.

◆ MxArray() [2/6]

MxArray ( MxArray && array )

inline

Move constructor.

◆ MxArray() [3/6]

MxArray ( const mxArray * array )

inlineexplicit

MxArray constructor from const mxArray*.

MxArray will not manage memory.

Parameters

array mxArray pointer given by mexFunction.

◆ MxArray() [4/6]

MxArray ( mxArray * array )

inlineexplicit

MxArray constructor from mutable mxArray*.

MxArray will manage memory.

Parameters

array mxArray pointer.

◆ MxArray() [5/6]

template<typename T >

MxArray ( const T & value )

inlineexplicit

MxArray constructor from scalar.

◆ ~MxArray()

virtual ~MxArray ( )

inlinevirtual

Destructor.

Unreleased pointers will be destroyed.

◆ MxArray() [6/6]

MxArray ( const MxArray & array )

private

Copy constructor is prohibited except internally.

Member Function Documentation

◆ assignCellTo() [1/2]

template<typename T >

static void assignCellTo	(	const mxArray *	array,
		mwIndex	index,
		T *	value )

inlinestaticprivate

Explicit cell element assignment.

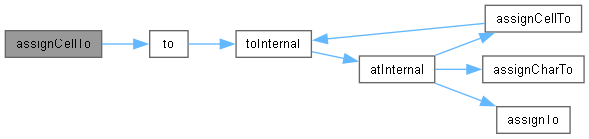

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assignCellTo() [2/2]

template<typename T >

static void assignCellTo	(	const mxArray *	array,
		T *	value )

inlinestaticprivate

Explicit cell array assignment.

Here is the call graph for this function:

◆ assignCharFrom() [1/4]

template<typename T >

static void assignCharFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< MxComplexType< T >::value, T >::type &	value )

inlinestaticprivate

◆ assignCharFrom() [2/4]

template<typename T >

static void assignCharFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< std::is_floating_point< T >::value, T >::type &	value )

inlinestaticprivate

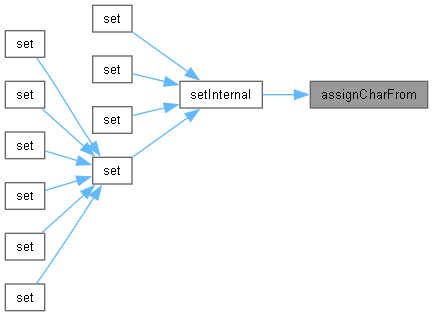

Here is the caller graph for this function:

◆ assignCharFrom() [3/4]

template<typename T >

static void assignCharFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< std::is_integral< T >::value &&!std::is_signed< T >::value, T >::type &	value )

inlinestaticprivate

◆ assignCharFrom() [4/4]

template<typename T >

static void assignCharFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< std::is_integral< T >::value &&std::is_signed< T >::value, T >::type &	value )

inlinestaticprivate

◆ assignCharTo() [1/2]

template<typename R >

static void assignCharTo	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< !std::is_signed< R >::value, R >::type *	value )

inlinestaticprivate

Explicit char (unsigned) element assignment.

◆ assignCharTo() [2/2]

template<typename R >

static void assignCharTo	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< std::is_signed< R >::value, R >::type *	value )

inlinestaticprivate

Explicit char (signed) element assignment.

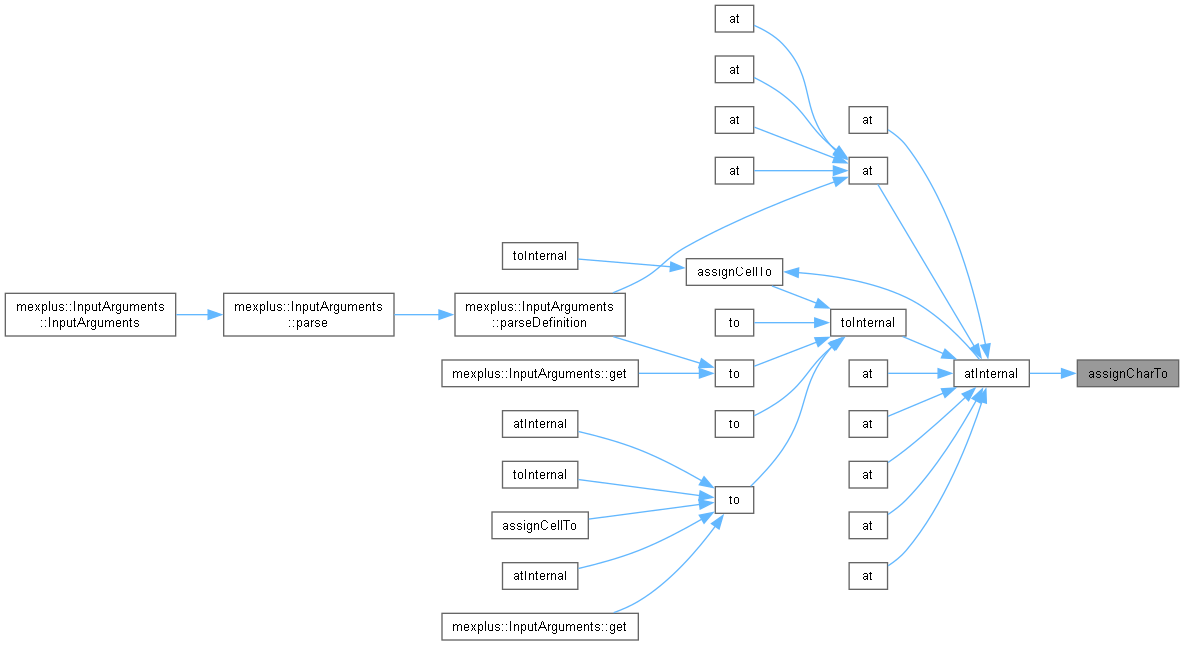

Here is the caller graph for this function:

◆ assignFrom() [1/2]

template<typename R , typename T >

static void assignFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< MxArithmeticType< T >::value\|\|MxCharType< T >::value, T >::type &	value )

inlinestaticprivate

Assignment helpers (for MxArray.set<type>(i, value))

Explicit numeric element assignment.

Here is the caller graph for this function:

◆ assignFrom() [2/2]

template<typename R , typename T >

static void assignFrom	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< MxComplexType< T >::value, T >::type &	value )

inlinestaticprivate

Explicit complex element assignment.

◆ assignStringTo() [1/2]

template<typename R >

static void assignStringTo	(	const mxArray *	array,
		typename std::enable_if< !std::is_signed< typename R::value_type >::value, R >::type *	value )

inlinestaticprivate

Explicit char (unsigned) array assignment.

◆ assignStringTo() [2/2]

template<typename R >

static void assignStringTo	(	const mxArray *	array,
		typename std::enable_if< std::is_signed< typename R::value_type >::value, R >::type *	value )

inlinestaticprivate

Explicit char (signed) array assignment.

Here is the caller graph for this function:

◆ assignTo() [1/5]

template<typename T , typename R >

static void assignTo	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< MxComplexType< R >::value, R >::type *	value )

inlinestaticprivate

Explicit complex element assignment.

◆ assignTo() [2/5]

template<typename T , typename R >

static void assignTo	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< std::is_floating_point< R >::value, R >::type *	value )

inlinestaticprivate

Explicit floating point element assignment.

◆ assignTo() [3/5]

template<typename T , typename R >

static void assignTo	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< std::is_integral< R >::value, R >::type *	value )

inlinestaticprivate

Assignment helpers (for MxArray.to<type>(value))

Explicit integer element assignment.

Here is the caller graph for this function:

◆ assignTo() [4/5]

template<typename T , typename R >

static void assignTo	(	const mxArray *	array,
		typename std::enable_if< MxArithmeticCompound< R >::value\|\|MxLogicalCompound< R >::value\|\|MxCharCompound< R >::value, R >::type *	value )

inlinestaticprivate

Explicit numeric array assignment.

◆ assignTo() [5/5]

template<typename T , typename R >

static void assignTo	(	const mxArray *	array,
		typename std::enable_if< MxComplexCompound< R >::value, R >::type *	value )

inlinestaticprivate

Explicit complex array assigment.

◆ at() [1/13]

static const mxArray * at	(	const mxArray *	array,
		const std::string &	field,
		mwIndex	index = 0 )

inlinestatic

◆ at() [2/13]

template<typename T >

static void at	(	const mxArray *	array,
		const std::string &	field,
		T *	value,
		mwIndex	index = 0 )

inlinestatic

Here is the call graph for this function:

◆ at() [3/13]

template<typename T >

static T at	(	const mxArray *	array,
		mwIndex	index )

inlinestatic

mxArray* element reader methods.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ at() [4/13]

static const mxArray * at	(	const mxArray *	array,
		mwIndex	index )

inlinestatic

◆ at() [5/13]

template<typename T >

static void at	(	const mxArray *	array,
		mwIndex	index,
		T *	value )

inlinestatic

Here is the call graph for this function:

◆ at() [6/13]

template<typename T >

T at	(	const std::string &	field,
		mwIndex	index = 0 ) const

inline

Struct element accessor.

Parameters

field	field name of the struct array.
index	index of the struct array.

Returns: value of the element at the specified field.

Here is the call graph for this function:

◆ at() [7/13]

const mxArray * at	(	const std::string &	field,
		mwIndex	index = 0 ) const

inline

Here is the call graph for this function:

◆ at() [8/13]

template<typename T >

void at	(	const std::string &	field,
		T *	value,
		mwIndex	index = 0 ) const

inline

Here is the call graph for this function:

◆ at() [9/13]

template<typename T >

T at ( const std::vector< mwIndex > & subscripts ) const

Template for element accessor.

Parameters

subscripts subscript indexes of elements.

Returns: value of the element at subscript index.

Here is the call graph for this function:

◆ at() [10/13]

template<typename T >

T at ( mwIndex index ) const

inline

Template for element accessor.

Parameters

index index of the array element.

Returns: value of the element at index.

Example:

MxArray array(prhs[0]);

double value = array.at<double>(0);

mexplus::MxArray

mxArray object wrapper for data conversion and manipulation.

Definition mxarray.h:101

Here is the call graph for this function:

◆ at() [11/13]

const mxArray * at ( mwIndex index ) const

inline

Here is the call graph for this function:

◆ at() [12/13]

template<typename T >

void at	(	mwIndex	index,
		T *	value ) const

inline

Here is the call graph for this function:

◆ at() [13/13]

template<typename T >

T at	(	mwIndex	row,
		mwIndex	column ) const

Template for element accessor.

Parameters

row	index of the first dimension.
column	index of the second dimension.

Returns: value of the element at (row, column).

Here is the call graph for this function:

◆ atInternal() [1/3]

template<typename T >

void atInternal	(	const mxArray *	array,
		const std::string &	field,
		mwIndex	index,
		T *	value )

staticprivate

Structure access.

Here is the call graph for this function:

◆ atInternal() [2/3]

template<typename T >

void atInternal	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< MxComplexOrArithmeticType< T >::value\|\|MxLogicalType< T >::value\|\|MxCharType< T >::value, T >::type *	value )

staticprivate

Templated mxArray getters

Fundamental numeric types.

Converter from fundamental numeric or complex types.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ atInternal() [3/3]

template<typename T >

void atInternal	(	const mxArray *	array,
		mwIndex	index,
		typename std::enable_if< std::is_compound< T >::value &&!MxComplexType< T >::value, T >::type *	value )

staticprivate

Converter for nested types.

Here is the call graph for this function:

◆ Cell()

static mxArray * Cell	(	int	rows = 1,
		int	columns = 1 )

inlinestatic

Create a new cell matrix.

Parameters

rows	Number of rows.
columns	Number of cols.

Example:

MxArray cell_array = MxArray::Cell(1, 2);
cell_array.set(0, 1);
cell_array.set(1, "another value");
plhs[0] = cell_array.release();

Here is the call graph for this function:

◆ classID()

mxClassID classID ( ) const

inline

Class ID of mxArray.

Here is the caller graph for this function:

◆ className()

const std::string className ( ) const

inline

Class name of mxArray.

Here is the caller graph for this function:

◆ clone()

mxArray * clone ( ) const

inline

Clone mxArray.

This always allocates new mxArray*.

Returns: Unmanaged mxArray*. Always caller must destroy.

Here is the caller graph for this function:

◆ cols()

mwSize cols ( ) const

inline

Number of columns in an array.

Here is the caller graph for this function:

◆ dimensions()

std::vector< mwSize > dimensions ( ) const

inline

Array of each dimension.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dimensionSize()

mwSize dimensionSize ( ) const

inline

Number of dimensions.

Here is the caller graph for this function:

◆ elementSize()

int elementSize ( ) const

inline

Element size.

◆ Eps()

static double Eps ( )

inlinestatic

Value of EPS.

◆ fieldName()

std::string fieldName ( int index ) const

inline

Get field name of a struct array.

Parameters

index index of the struct array.

Returns: std::string.

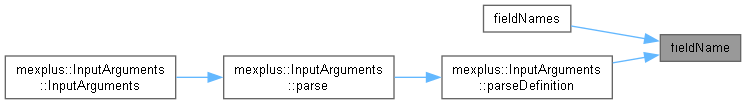

Here is the caller graph for this function:

◆ fieldNames()

std::vector< std::string > fieldNames ( ) const

inline

Get field names of a struct array.

Returns: std::vector<std::string> of struct field names.

Here is the call graph for this function:

◆ fieldSize()

int fieldSize ( ) const

inline

Number of fields in a struct array.

Here is the caller graph for this function:

◆ from() [1/3]

static mxArray * from ( const char * value )

inlinestatic

◆ from() [2/3]

template<typename T >

static mxArray * from ( const T & value )

inlinestatic

mxArray* importer methods.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ from() [3/3]

static mxArray * from ( int32_t value )

inlinestatic

◆ fromInternal() [1/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if< MxArithmeticCompound< Container >::value, Container >::type & value )

staticprivate

Container with fundamental numerics, i.e.

vector<double>.

◆ fromInternal() [2/10]

template<typename T >

mxArray * fromInternal ( const typename std::enable_if< MxArithmeticType< T >::value, T >::type & value )

staticprivate

Templated mxArray importers

Fundamental numerics.

Fundamental numeric type.

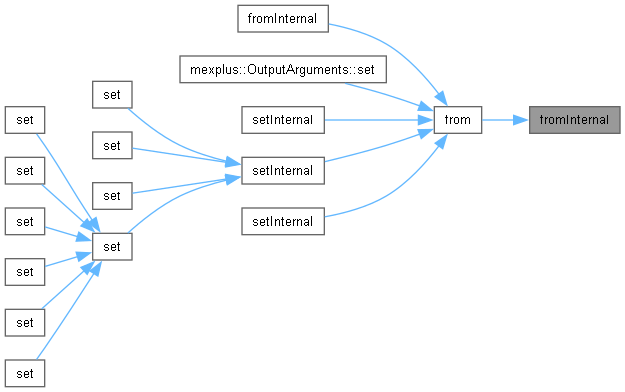

Here is the caller graph for this function:

◆ fromInternal() [3/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if< MxCellCompound< Container >::value, Container >::type & value )

staticprivate

Container with cell type content.

Here is the call graph for this function:

◆ fromInternal() [4/10]

template<typename T >

mxArray * fromInternal ( const typename std::enable_if< MxCharType< T >::value, T >::type & value )

staticprivate

Char type.

◆ fromInternal() [5/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if< MxComplexCompound< Container >::value, Container >::type & value )

staticprivate

Container with complex numbers, i.e.

vector<complex<double>>.

◆ fromInternal() [6/10]

template<typename T >

mxArray * fromInternal ( const typename std::enable_if< MxComplexType< T >::value, T >::type & value )

staticprivate

Complex types, complex<float> or complex<double>.

Complex type, complex<float> or complex<double>.

◆ fromInternal() [7/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if< MxLogicalCompound< Container >::value, Container >::type & value )

staticprivate

Container with logicals.

◆ fromInternal() [8/10]

template<typename T >

mxArray * fromInternal ( const typename std::enable_if< MxLogicalType< T >::value, T >::type & value )

staticprivate

Logicals.

◆ fromInternal() [9/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if<(MxCharCompound< Container >::value) &&!(std::is_signed< typename Container::value_type >::value), Container >::type & value )

staticprivate

Container with unsigned char.

Here is the call graph for this function:

◆ fromInternal() [10/10]

template<typename Container >

mxArray * fromInternal ( const typename std::enable_if<(MxCharCompound< Container >::value) &&(std::is_signed< typename Container::value_type >::value), Container >::type & value )

staticprivate

Containter with signed char.

Here is the call graph for this function:

◆ get()

const mxArray * get ( ) const

inline

Conversion to const mxArray*.

Returns: const mxArray* pointer.

◆ getChars()

mxChar * getChars ( ) const

inline

Here is the call graph for this function:

◆ getData()

template<typename T >

T * getData ( ) const

Get raw data pointer.

Returns: pointer T*. If MxArray is not compatible, return NULL.

Here is the call graph for this function:

◆ getImagData()

template<typename T >

T * getImagData ( ) const

Get raw data pointer to imaginary part.

Returns: pointer T*. If MxArray is not compatible, return NULL.

Here is the call graph for this function:

◆ getLogicals()

mxLogical * getLogicals ( ) const

inline

Here is the call graph for this function:

◆ getMutable()

mxArray * getMutable ( )

inline

Get raw mxArray*.

Returns: mxArray* pointer.

◆ hasField()

bool hasField	(	const std::string &	field_name,
		mwIndex	index = 0 ) const

inline

Determine whether a struct array has a specified field.

Here is the call graph for this function:

◆ Inf()

static double Inf ( )

inlinestatic

Value of infinity.

◆ isCell()

bool isCell ( ) const

inline

Determine whether input is cell array.

◆ isChar()

bool isChar ( ) const

inline

Determine whether input is string array.

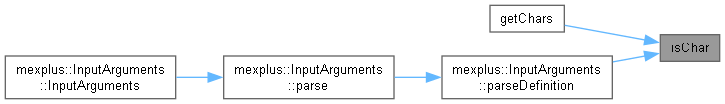

Here is the caller graph for this function:

◆ isClass()

bool isClass ( const char * name ) const

inline

Determine whether array is member of specified class.

◆ isComplex()

bool isComplex ( ) const

inline

Determine whether data is complex.

◆ isDouble()

bool isDouble ( ) const

inline

Determine whether mxArray represents data as double-precision, floating-point numbers.

◆ isEmpty()

bool isEmpty ( ) const

inline

Determine whether array is empty.

◆ IsFinite()

static bool IsFinite ( double value )

inlinestatic

Determine whether input is finite.

◆ isFromGlobalWS()

bool isFromGlobalWS ( ) const

inline

Determine whether array was copied from MATLAB global workspace.

◆ IsInf()

static bool IsInf ( double value )

inlinestatic

Determine whether input is infinite.

◆ isInt16()

bool isInt16 ( ) const

inline

Determine whether array represents data as signed 16-bit integers.

◆ isInt32()

bool isInt32 ( ) const

inline

Determine whether array represents data as signed 32-bit integers.

◆ isInt64()

bool isInt64 ( ) const

inline

Determine whether array represents data as signed 64-bit integers.

◆ isInt8()

bool isInt8 ( ) const

inline

Determine whether array represents data as signed 8-bit integers.

◆ isIntegral()

bool isIntegral ( const char * name ) const

inline

Determine whether array is integral type.

◆ isLogical()

bool isLogical ( ) const

inline

Determine whether array is of type mxLogical.

Here is the caller graph for this function:

◆ isLogicalScalar()

bool isLogicalScalar ( ) const

inline

Determine whether scalar array is of type mxLogical.

◆ isLogicalScalarTrue()

bool isLogicalScalarTrue ( ) const

inline

Determine whether scalar array of type mxLogical is true.

◆ IsNaN()

static bool IsNaN ( double value )

inlinestatic

Determine whether input is NaN (Not-a-Number).

◆ isNumeric()

bool isNumeric ( ) const

inline

Determine whether array is numeric.

◆ isOwner()

bool isOwner ( ) const

inline

Return true if owner.

Here is the caller graph for this function:

◆ isSingle()

bool isSingle ( ) const

inline

Determine whether array represents data as single-precision, floating-point numbers.

◆ isSparse()

bool isSparse ( ) const

inline

Determine whether input is sparse array.

◆ isStruct()

bool isStruct ( ) const

inline

Determine whether input is structure array.

Here is the caller graph for this function:

◆ isUint16()

bool isUint16 ( ) const

inline

Determine whether array represents data as unsigned 16-bit integers.

◆ isUint32()

bool isUint32 ( ) const

inline

Determine whether array represents data as unsigned 32-bit integers.

◆ isUint64()

bool isUint64 ( ) const

inline

Determine whether array represents data as unsigned 64-bit integers.

◆ isUint8()

bool isUint8 ( ) const

inline

Determine whether array represents data as unsigned 8-bit integers.

◆ isVector()

bool isVector ( ) const

inline

Determine whether input is vector array.

◆ Logical()

static mxArray * Logical	(	int	rows = 1,
		int	columns = 1 )

inlinestatic

Create a new logical matrix.

Parameters

rows	Number of rows.
columns	Number of cols.

Here is the call graph for this function:

◆ NaN()

static double NaN ( )

inlinestatic

Value of NaN (Not-a-Number).

◆ nonZeroMax()

mwSize nonZeroMax ( ) const

inline

Number of elements in IR, PR, and PI arrays.

◆ Numeric() [1/2]

template<typename T >

mxArray * Numeric	(	int	rows = 1,
		int	columns = 1 )

static

Create a new numeric (real or complex) matrix.

Parameters

rows	Number of rows.
columns	Number of cols.

Here is the call graph for this function:

◆ Numeric() [2/2]

template<typename T >

mxArray * Numeric ( std::vector< std::size_t > dims )

static

Create a new numeric (real or complex) matrix.

Parameters

ndim	Number of dimensions.
dims	Dimensions array. Each element in the dimensions array contains the size of the array in that dimension.

◆ operator bool()

operator bool ( ) const

inline

Return true if the array is not NULL.

◆ operator=() [1/5]

MxArray & operator= ( const MxArray & rhs )

private

Copy assignment operator is prohibited.

◆ operator=() [2/5]

MxArray & operator= ( const mxArray * rhs )

inline

Assignment from const mxArray*.

MxArray will not manage memory.

Here is the call graph for this function:

◆ operator=() [3/5]

MxArray & operator= ( MxArray && rhs )

inline

Move assignment.

◆ operator=() [4/5]

MxArray & operator= ( mxArray * rhs )

inline

Assignment from mutable mxArray*.

MxArray will manage memory.

Here is the call graph for this function:

◆ operator=() [5/5]

MxArray & operator= ( std::nullptr_t )

inline

NULL assignment.

Here is the call graph for this function:

◆ release()

mxArray * release ( )

inline

Release managed mxArray* pointer, or clone if not owner.

Returns: Unmanaged mxArray*. Always caller must destroy.

Here is the call graph for this function:

◆ reset() [1/2]

void reset ( const mxArray * array = NULL )

inline

Reset an mxArray to a const mxArray*.

Caller must be VERY careful with this, as the behavior is undefined when the original mxArray* is destroyed. For example, the following will crash.

MxArray foo;
{
  MxArray bar(1);
  foo.reset(bar.get());
}
foo.toInt(); // Error!

Here is the caller graph for this function:

◆ reset() [2/2]

void reset ( mxArray * array )

inline

Reset an mxArray.

◆ rows()

mwSize rows ( ) const

inline

Number of rows in an array.

Here is the caller graph for this function:

◆ set() [1/12]

template<typename T >

void set	(	const std::string &	field,
		const T &	value,
		mwIndex	index = 0 )

inline

Struct element write accessor.

Parameters

field	field name of the struct array.
value	value of the field.
index	linear index of the struct array element.

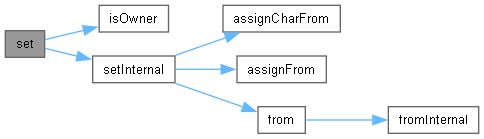

Here is the call graph for this function:

◆ set() [2/12]

void set	(	const std::string &	field,
		mxArray *	value,
		mwIndex	index = 0 )

inline

Struct element write accessor.

Parameters

field	field name of the struct array.
value	value of the field to be inserted.
index	linear index of the struct array element.

Here is the call graph for this function:

◆ set() [3/12]

template<typename T >

void set	(	const std::vector< mwIndex > &	subscripts,
		const T &	value )

Template for element write accessor.

Parameters

subscripts	subscript index of the element.
value	value of the field.

Here is the call graph for this function:

◆ set() [4/12]

void set	(	const std::vector< mwIndex > &	subscripts,
		mxArray *	value )

inline

Cell element write accessor.

Parameters

subscripts	subscript index of the element.
value	value of the field.

Here is the call graph for this function:

◆ set() [5/12]

template<typename T >

void set	(	mwIndex	index,
		const T &	value )

inline

Template for element write accessor.

Parameters

index	offset of the array element.
value	value of the field.

Here is the call graph for this function:

◆ set() [6/12]

void set	(	mwIndex	index,
		mxArray *	value )

inline

Cell element write accessor.

Parameters

index	index of the element.
value	cell element to be inserted.

Here is the call graph for this function:

◆ set() [7/12]

template<typename T >

void set	(	mwIndex	row,
		mwIndex	column,
		const T &	value )

Template for element write accessor.

Parameters

row	index of the first dimension of the array element.
column	index of the first dimension of the array element.
value	value of the field.

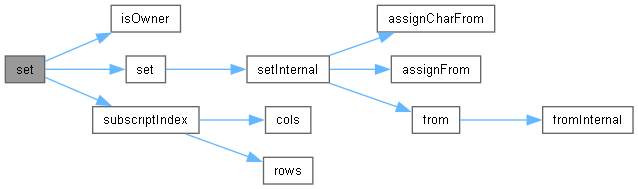

Here is the call graph for this function:

◆ set() [8/12]

void set	(	mwIndex	row,
		mwIndex	column,
		mxArray *	value )

inline

Cell element write accessor.

Parameters

row	index of the first dimension of the array element.
column	index of the first dimension of the array element.
value	cell element to be inserted.

Here is the call graph for this function:

◆ set() [9/12]

template<typename T >

static void set	(	mxArray *	array,
		const std::string &	field,
		const T &	value,
		mwIndex	index = 0 )

inlinestatic

Here is the call graph for this function:

◆ set() [10/12]

static void set	(	mxArray *	array,
		const std::string &	field,
		mxArray *	value,
		mwIndex	index = 0 )

inlinestatic

◆ set() [11/12]

template<typename T >

static void set	(	mxArray *	array,
		mwIndex	index,
		const T &	value )

inlinestatic

mxArray* element writer methods.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set() [12/12]

static void set	(	mxArray *	array,
		mwIndex	index,
		mxArray *	value )

inlinestatic

◆ setInternal() [1/3]

template<typename T >

void setInternal	(	mxArray *	array,
		const std::string &	field,
		mwIndex	index,
		const T &	value )

staticprivate

Structure access.

Here is the call graph for this function:

◆ setInternal() [2/3]

template<typename T >

void setInternal	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< !std::is_compound< T >::value\|\|MxComplexType< T >::value, T >::type &	value )

staticprivate

Templated mxArray element setters

Templated mxArray setters

Fundamental numeric and complex types.

Converter from fundamental numeric or complex types.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setInternal() [3/3]

template<typename T >

void setInternal	(	mxArray *	array,
		mwIndex	index,
		const typename std::enable_if< MxCellType< T >::value, T >::type &	value )

staticprivate

Container types.

Converter from fundamental numeric or complex types.

Here is the call graph for this function:

◆ size()

mwSize size ( ) const

inline

Number of elements in an array.

◆ Struct()

static mxArray * Struct	(	int	nfields = 0,
		const char **	fields = NULL,
		int	rows = 1,
		int	columns = 1 )

inlinestatic

Generic constructor for a struct matrix.

Parameters

fields	field names.
nfields	number of field names.
rows	size of the first dimension.
columns	size of the second dimension.

Example:

const char* fields[] = {"field1", "field2"};
MxArray struct_array(MxArray::Struct(2, fields));
struct_array.set("field1", 1);
struct_array.set("field2", "field2 value");
plhs[0] = struct_array.release();

Here is the call graph for this function:

◆ subscriptIndex() [1/2]

mwIndex subscriptIndex ( const std::vector< mwIndex > & subscripts ) const

inline

Offset from first element to desired element.

Parameters

subscripts subscript indexes of the array.

Returns: linear offset of the specified subscript index.

◆ subscriptIndex() [2/2]

mwIndex subscriptIndex	(	mwIndex	row,
		mwIndex	column ) const

inline

Offset from first element to desired element.

Parameters

row	index of the first dimension of the array.
column	index of the second dimension of the array.

Returns: linear offset of the specified subscript index.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ swap()

void swap ( MxArray & rhs )

inline

Swap operation.

◆ to() [1/4]

template<typename T >

T to ( ) const

inline

Convert MxArray to a specified type.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ to() [2/4]

template<typename T >

static T to ( const mxArray * array )

inlinestatic

Here is the call graph for this function:

◆ to() [3/4]

template<typename T >

static void to	(	const mxArray *	array,
		T *	value )

inlinestatic

mxArray* exporter methods.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ to() [4/4]

template<typename T >

void to ( T * value ) const

inline

Here is the call graph for this function:

◆ toInternal() [1/3]

template<typename T >

static void toInternal	(	const mxArray *	array,
		typename std::enable_if< MxArithmeticType< T >::value\|\|MxComplexType< T >::value\|\|MxLogicalType< T >::value\|\|MxCharType< T >::value, T >::type *	value )

inlinestaticprivate

Templated mxArray exporters

Singleton types.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ toInternal() [2/3]

template<typename T >

void toInternal	(	const mxArray *	array,
		typename std::enable_if< MxCellType< T >::value &&(!std::is_compound< T >::value\|\|MxCellType< typename T::value_type >::value), T >::type *	value )

staticprivate

Nested types (leads into recursive deduction).

Converter from nested types to container.

Here is the call graph for this function:

◆ toInternal() [3/3]

template<typename T >

void toInternal	(	const mxArray *	array,
		typename std::enable_if< MxComplexOrArithmeticCompound< T >::value\|\|MxLogicalCompound< T >::value\|\|MxCharCompound< T >::value, T >::type *	value )

staticprivate

Vector types.

Templated mxArray exporters

Converter from numeric matrix to container.

Here is the call graph for this function:

Member Data Documentation

◆ array_

mxArray* array_

private

Pointer to the mxArray C object.

◆ owner_

bool owner_

private

Flag to enable resource management.

The documentation for this class was generated from the following file:

F:/dev/projects/MocoExtendProblem/libs/mexplus/mxarray.h

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MxArray() [1/6]

◆ MxArray() [2/6]

◆ MxArray() [3/6]

◆ MxArray() [4/6]

◆ MxArray() [5/6]

◆ ~MxArray()

◆ MxArray() [6/6]

Member Function Documentation

◆ assignCellTo() [1/2]

◆ assignCellTo() [2/2]

◆ assignCharFrom() [1/4]

◆ assignCharFrom() [2/4]

◆ assignCharFrom() [3/4]

◆ assignCharFrom() [4/4]

◆ assignCharTo() [1/2]

◆ assignCharTo() [2/2]

◆ assignFrom() [1/2]

◆ assignFrom() [2/2]

◆ assignStringTo() [1/2]

◆ assignStringTo() [2/2]

◆ assignTo() [1/5]

◆ assignTo() [2/5]

◆ assignTo() [3/5]

◆ assignTo() [4/5]

◆ assignTo() [5/5]

◆ at() [1/13]

◆ at() [2/13]

◆ at() [3/13]

◆ at() [4/13]

◆ at() [5/13]

◆ at() [6/13]

◆ at() [7/13]

◆ at() [8/13]

◆ at() [9/13]

◆ at() [10/13]

◆ at() [11/13]

◆ at() [12/13]

◆ at() [13/13]

◆ atInternal() [1/3]

◆ atInternal() [2/3]

◆ atInternal() [3/3]

◆ Cell()

◆ classID()

◆ className()

◆ clone()

◆ cols()

◆ dimensions()

◆ dimensionSize()

◆ elementSize()

◆ Eps()

◆ fieldName()

◆ fieldNames()

◆ fieldSize()

◆ from() [1/3]

◆ from() [2/3]

◆ from() [3/3]

◆ fromInternal() [1/10]

◆ fromInternal() [2/10]

◆ fromInternal() [3/10]

◆ fromInternal() [4/10]

◆ fromInternal() [5/10]

◆ fromInternal() [6/10]

◆ fromInternal() [7/10]

◆ fromInternal() [8/10]

◆ fromInternal() [9/10]

◆ fromInternal() [10/10]

◆ get()

◆ getChars()

◆ getData()

◆ getImagData()

◆ getLogicals()

◆ getMutable()

◆ hasField()
